RF Front-End of Digital Communication System (Software-Defined Radio)

The RF Front-End is a bridge between an analog RF signal and a FPGA for any wireless communication devices and measurement tools. The module performs analog signal processing in both RX/TX directions. The receiver has a one channel and the transmitter can generate I/Q channels.

The RX channel performs hardware signal processing: the analog signal is filtered, amplified, being sampled and processed by an analog-to-digital converter(ADC). The prepared digital signals forwarded to the FPGA for digital signal processing (DSP). In the TX channels: the digital signals from the FPGA are converted to analog signal by digital-to-analog converter(DAC), filtered and amplified. The clocking signal is genarated by a low-jitter oscillator and synchronized with the FPGA clock.

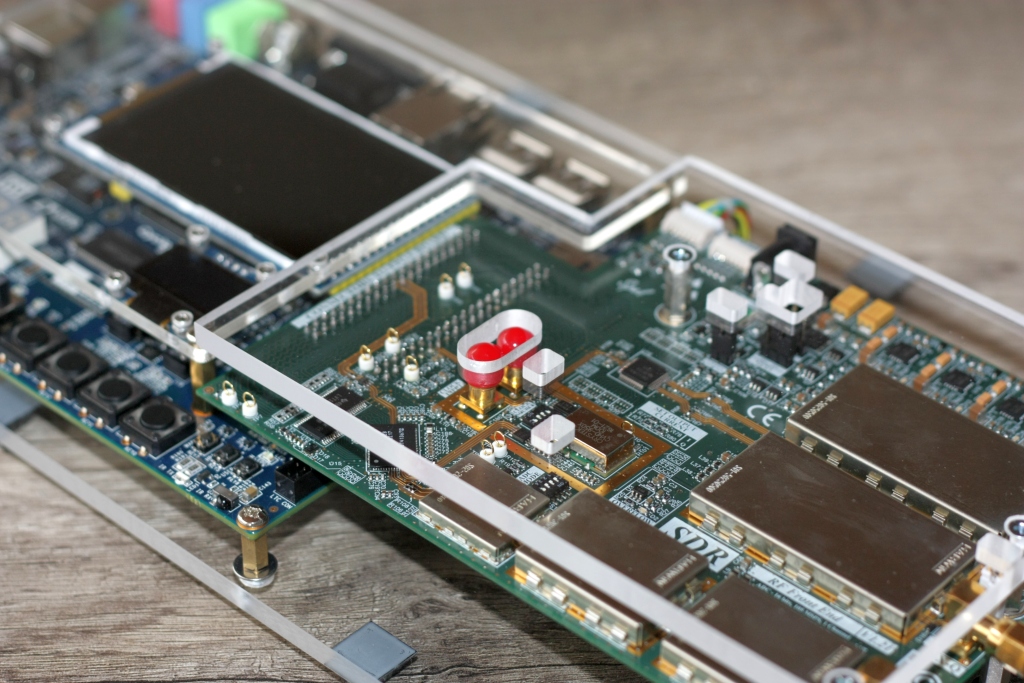

The module designed to work with DE1-SoC Board (SoC FPGA+ARM Altera Cyclon V), but it can be connected to any board with FPGA throw general connectors.

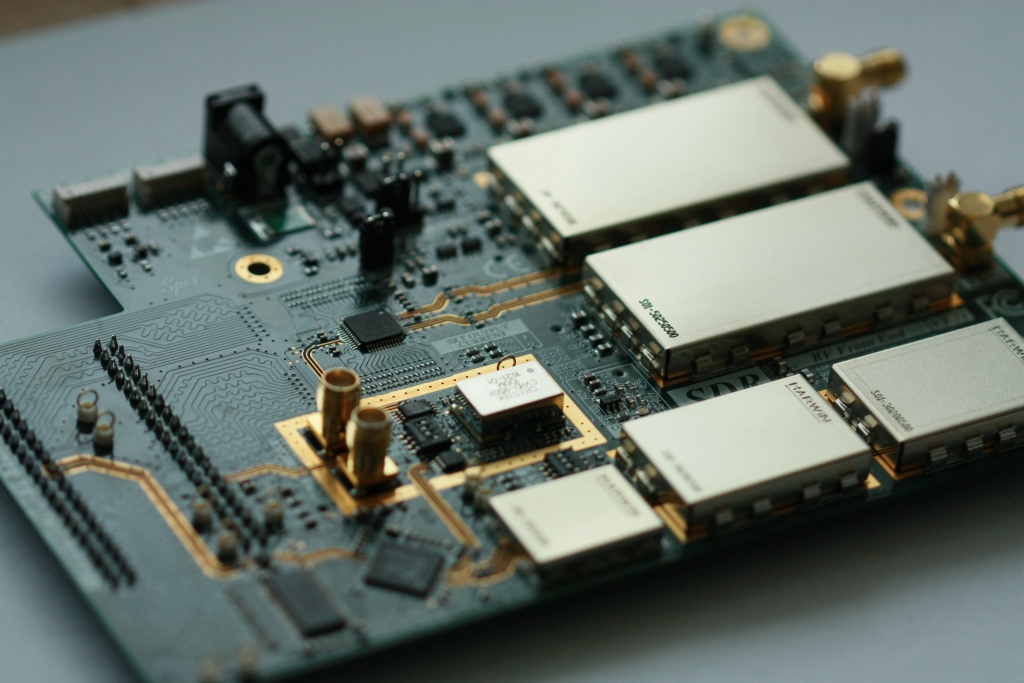

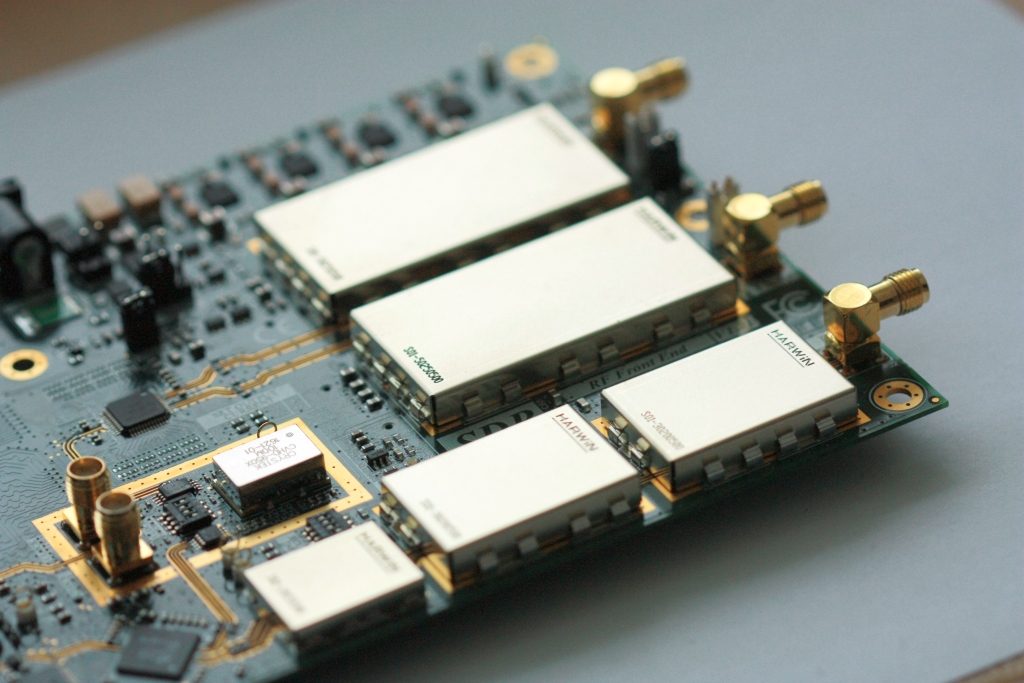

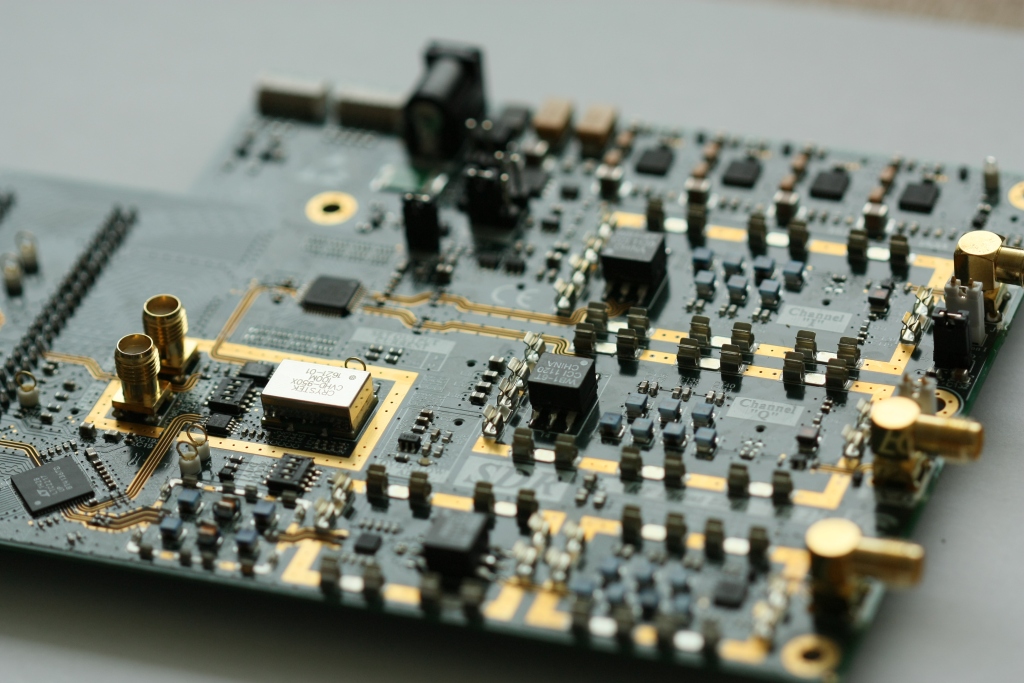

The module consist of:

ADC – 16bits 100Msps
DAC – 14bits 275Msps
Low Jitter Clock
Differential Anti Aliasing LC filter(AAF) – 6 order
Low Pass LC filters(LPF) – 7 order
Low Noise Amplifier
RF Amplifier
Digital Controlled Attenuators
Low Noise LDOs

Smart House System

Analog/Digital Intercom module. (Integration module of doorbell intercom system)

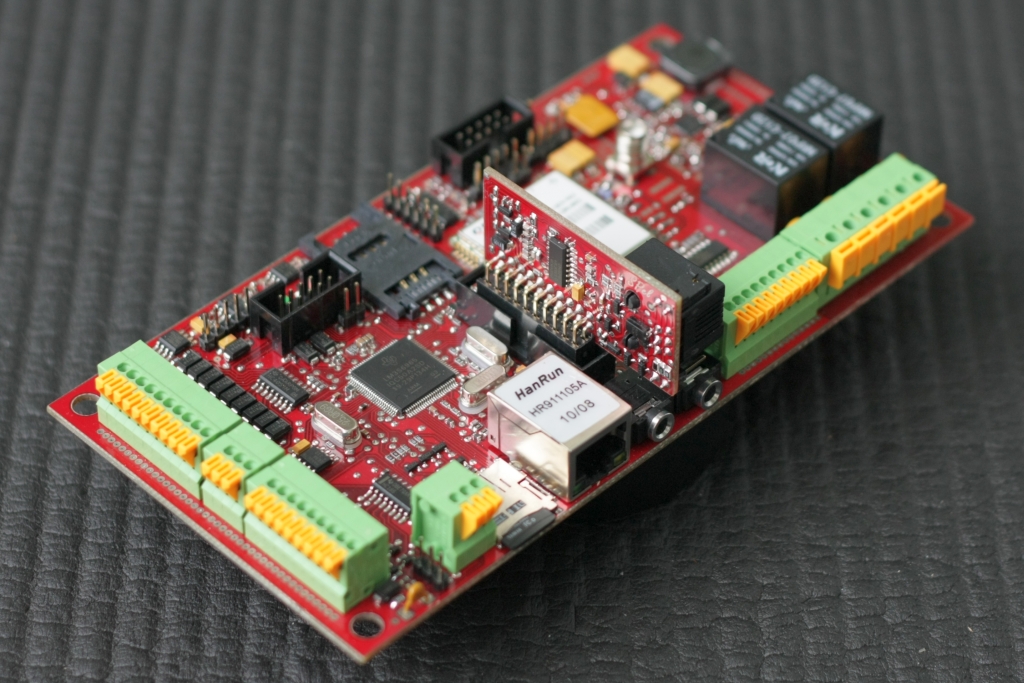

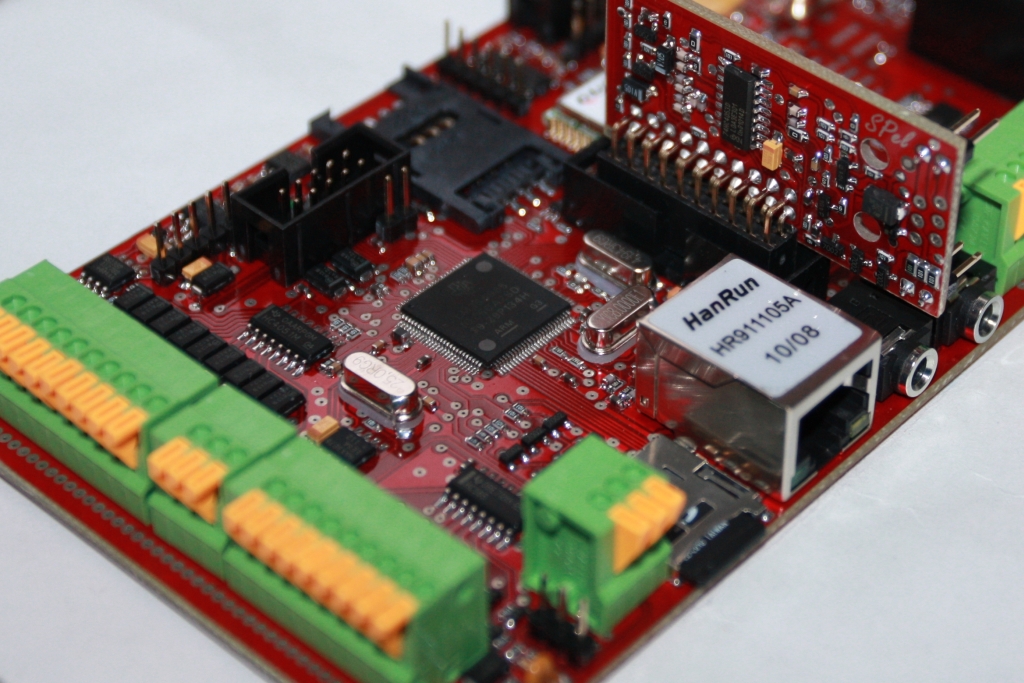

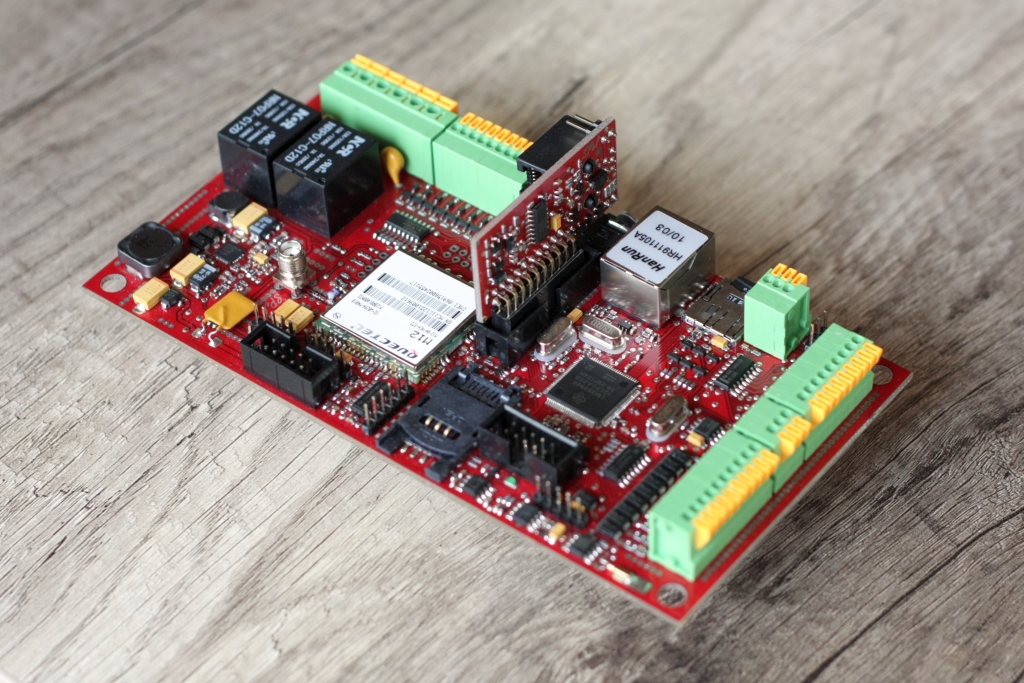

Set of smart house elements: Outlet control, Light control, Thermostat, Water sensor, Gas sensor, Electricity meter.

The devices consists of:

ARM Cortex-M4
Flash Memory
GSM module
Battery charger
DC-DC convertors
MicroSD
ADC/DAC
USB, Ethernet, RS485, 1-Wire, Ethernet

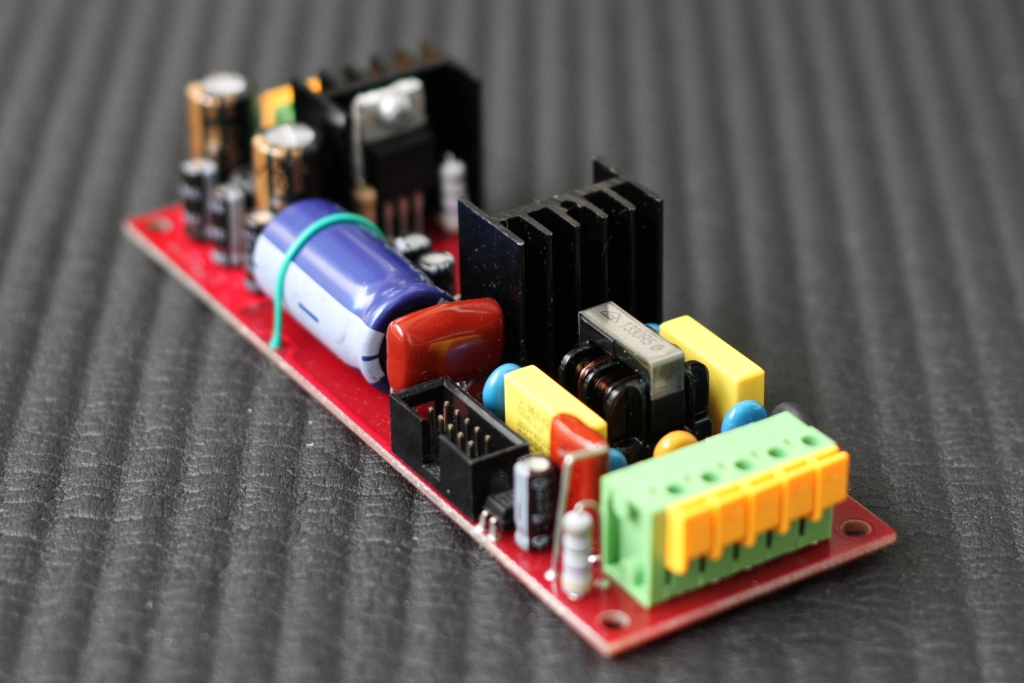

AC-DC power supply

MERLIN (Methane Remote Sensing Lidar Mission)

FRU (Frequency Reference Unit) is a module of a satellite with a scientific objective to measure the global distribution of the gas methane. The unit provides an optical/electrical frequency stabilization of the reference laser diode with respect to the methane gas absorption feature.

The unit consists of methane gas cell, laser diodes, photo receivers and high precision RADHard electronics:

Low Noise Laser Diode Driver
TEC Driver, CMOS (CCD) Sensor + High Speed Analog Font End
ADCs
DACs
FPGA
DC/DC converters

WAVELENGTH DIVISION MULTIPLEXING (WDM) is a Laser Communication Terminal between Satellites

Optical terminals of future telecommunication satellites and constellations will require that the optical links achieve a terabyte data rate capability.

The unit consists of:

Optical BPSK Modulator/Demodulator (Optical PLL)
Low Noise RF Amplifiers (6GHz)
Phase Detector
RF Synthesizer
Low Pass Filters
Fast Comparators (6GHz)
Low Noise Photo receiver
Low Noise Laser Diode Driver
TEC Driver
Lock-In Amplifier

ICARUS (International Cooperation for Animal Research Using Space) is a global space monitoring system

ICARUS is a global collaboration of animal scientists to establish a novel satellite based infrastructure for earth observation of small objects such as migratory birds, bats or sea turtles. It consists of space and ground-deployed elements. The space element (International Space Station) is used as relay for the radio frequency communication link between animal tags and the Operations Center.

The system is installed on the ISS (International Space Station) electronics:

On board computer
SDR RF transceivers
FPGAs
NAND FLASH
SDRAMs
PMIC
High Speed ADCs and DACs
Low Noise Amplifiers
Power RF Amplifiers
Antennas

ICARUS Animal Tag

The Animal Tag is a tiny device (5 grams and a volume of approximately 2 cm3) that collects science measurements: GPS position, acceleration, magnetometer values, pressure, temperature and provides the capability of communicating up to 800 km with the ICARUS equipment at the ISS. The unit is developed using cutting edge electronic solution:

Solar Cell
Energy Harvesting MPPT charger
Fuel Gauge
MEMS Sensors
ARM Cortex-M4
FLASH
High Speed ADC/DAC
FPGA
GPS receiver
RF Transceiver
LNA
RF Power Amplifier

Unattended Secure Payment Terminal (UX301, UX310)

The UX 300 is the central controller system with an integrated hybrid card reader for magnetic and chip cards as well as contactless payment with NFC technology.

Portable Secure Payment Terminal (H5000)

The H5000 is the portable payment terminal with an integrated hybrid card reader for magnetic and chip cards as well as contactless payment with NFC technology, printer and touchscreen.

The devices consists of:

ARM (SoC)
SDRAM
NAND FLASH
PMIC
RFID (NFC)
Ethernet, USB, MDB, ISO7816 Smart card
Magnetic strip
Motor Driver

Wireless Security Alarm System / Smart House System

The main module monitors and controls network devices by wireless protocol.

Battery Powered Wireless penetration motion and door sensors.

The devices consists of:

ARM Cortex-M3
Flash Memory
USB, Ethernet
GSM module
RF transceiver
DC-DC convertors

Industrial PID controller for HVAC Systems

ComfortW is a PID controller for heating, ventilation and air conditioning (HVAC) systems to maintain occupants’ thermal comfort and energy efficiency. The controller has analogue and digital inputs to measure a temperature, humidity or pressure. Analog and digital outputs control the devices such as actuators and solenoid valves. Digital PWM outputs control the power opto-triacs for Electrical Heaters and Freon units.

Analog Inputs: PT100, PT1000, NTC, 0-10V, 4-20mA
Analog Outputs: 0-10V, 4-20mA
Digital Inputs: Opto-Isolated
Digital outputs: Opto-Triac, Relays
Interfaces: RS485, Ethernet, 1-Wire
